Title

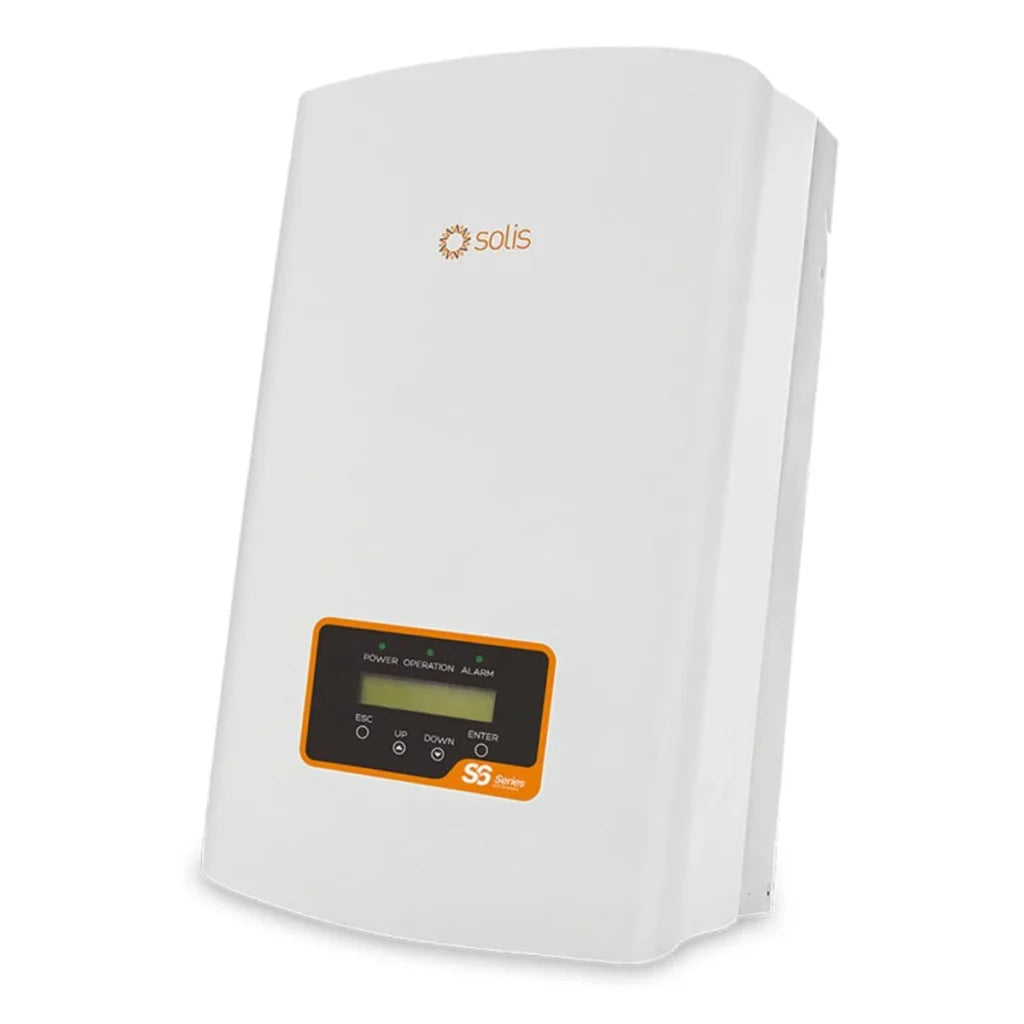

The Solis S6-GR1P(2.5-6)K series inverter is designed for residential PV plants with a 14A maximum input current per string and is compatible with high-efficiency modules and bi-facial modules. Its compact and lightweight design, bring easy installation and protection level increased to IP66. The Integrated AFCI function can proactively reduce the risk of fire.
Product Features
- Max PV Power of 6.9kW.
- Maximum string input current 14A.
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Super high frequency switching technology with Max. Efficiency over 97.3% and European efficiency over 96.6%.
- Wide input voltage range – Ultra low start-up voltage of 120V and max PV input voltage of 600V.
- Dual MPPT design with precise MPPT algorithm.
- Export Limitation built in – Requires CT clamp (sold separately).
- Integrated AFCI (DC arc-fault circuit protection).
- Integrated DC switch for emergency shutdown of PV power or safe PV maintenance.
- Rated IP66.
- 5-year standard warranty, extendable up to 10-years.
- SA: NRS 097 certified and COCT Certified
Specifications
Input DC
- Recommended max. PV power: 6.9 kW.
- Max. input voltage: 600 V.
- Rated voltage: 330 V.
- Start-up voltage: 120 V.
- MPPT voltage range: 90-520 V.
- Max. input current: 14 A / 14 A.
- Max. Short Circuit current: 22 A / 22 A.
- MPPT number: 2.
- Max. input strings number: 2.
Output AC
- Rated output power: 4.6W.
- Max. apparent output power: 5 kVA.
- Max. output power: 5 kW.
- Rated grid voltage: 1/N/PE, 220 V / 230 V.
- Rated grid frequency: 50 Hz.
- Rated grid output current: 22.7 A / 21.7 A.
- Max. output current: 25 A.
- Power Factor: >0.99 (0.8 leading – 0.8 lagging).
- THDi: <3%.
Efficiency
- Max. efficiency: 97.6%.
- EU efficiency: 97.1%.
Protection
- DC reverse-polarity protection: Yes.
- Short circuit protection: Yes.
- Output over current protection: Yes.
- Surge protection: Yes.
- Grid monitoring: Yes.
- Anti-islanding protection: Yes.
- Temperature protection: Yes.
- Integrated AFCI (DC arc-fault circuit protection):Yes (Activation required).
- Integrated DC switch: Yes.
General Data
- Dimensions (W*H*D): 310*543*160 mm.
- Weight: 11.2 kg.
- Topology: Transformerless.
- Self-consumption (night): <1 W.
- Operating ambient temperature range: -25 ~ +60°C.
- Relative humidity: 0-100%.
- Ingress protection: Ip66.
- Cooling concept: Natural convection.
- Max. operation altitude: 4000 m.
- Safety/EMC standard: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3.
- Grid connection standard: G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA.
