Title

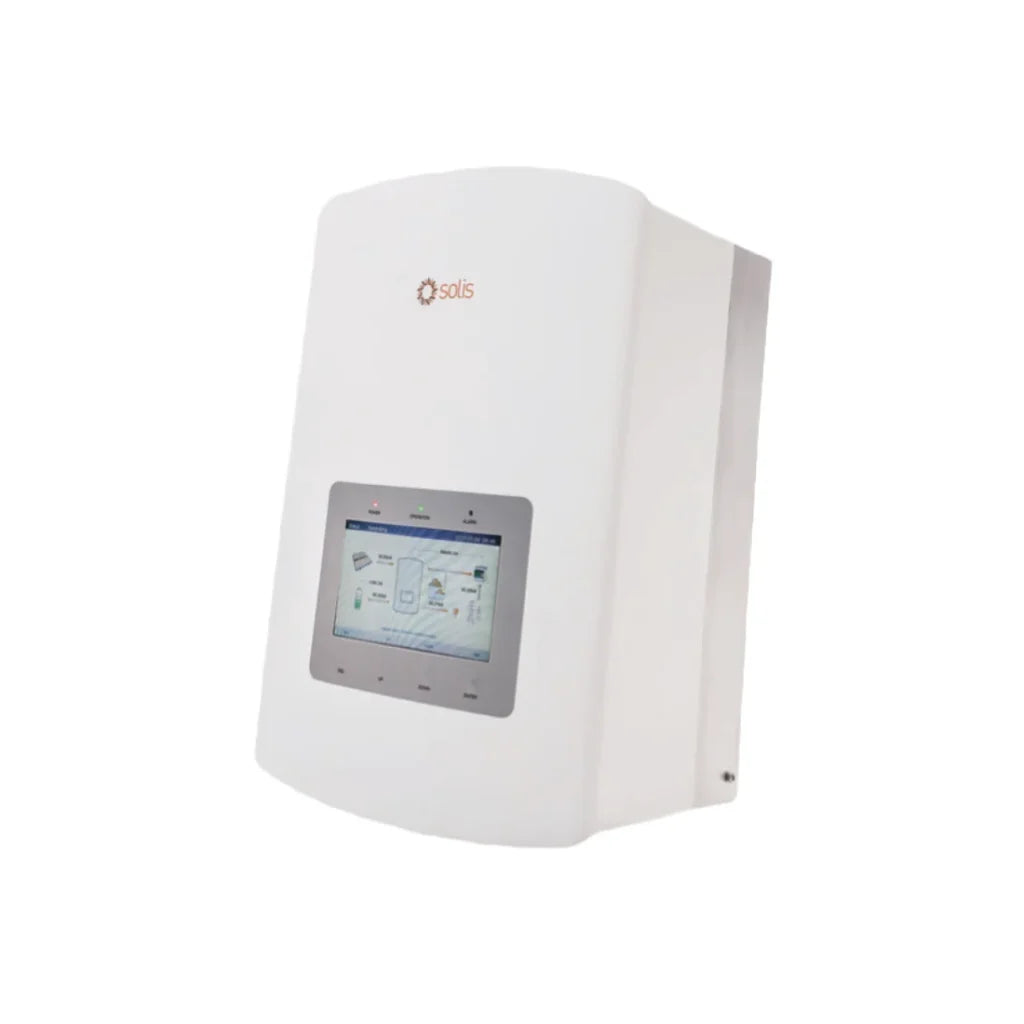

The Solis S5 Hybrid inverter range offers an improved LCD display, and better protection and as standard, supports backup power for important loads during load shedding as well as saving power during peak demands. Making this the ideal solution you’ve always wanted.
Features
Max. string input current 15A
Uninterrupted power supply, 20ms reaction
5kW backup power to support more important loads
With shifting and peak shaving capabilities friendly to grid
Multiple working modes to maximize self-consumption, and increase benefit
Higher charge-discharge efficiency, improving the economic benefits
Compatible with lithium & lead-acid batteries, increased choice in different markets
Fanless design, long lifespan
AFCI protection proactively reduces fire risk
Intelligent EMS function, improving battery reliability
With high-frequency isolation technology, making the system safer and long lifespan
24-hour fully intelligent energy management, Real-time grasp of PV plant status
Remotely control & upgrade function, making digital power plant maintenance at your fingertips
Specifications
Input DC (PC Side)
Recommended max. PV power: 8 kW.
Max. input voltage: 600 V.
Rated voltage: 330 V.
Start-up voltage: 120 V
MPPT voltage range: 90-520 V.
Max. input current: 15 A / 15 A.
Max. short circuit current: 22.5 A / 22.5 A.
MPPT number/Max. input strings number: 2/2.
Battery
Battery type: Li-Ion / Lead-acid.
Battery voltage range: 42 – 58 V.
Battery capacity: 50 – 2000 Ah.
Max. charge/discharge power: 5 kW.
Max. charge/discharge current: 100 A.
Communication: CAN.
Output AC (Back-up)
Rated output power: 5 kW.
Max. apparent output power: 7 kVA, 10SEC.
Back-up switch time: <20 ms.
Rated output voltage: 1/N/PE, 220 V / 230 V .
Rated frequency: 50 Hz
Rated output current: 23 A / 22 A.
THDv (@linear load): <2%.
Input DC (Grid Side)
Input voltage range: 187-265 V.
Max. input current: 34.5 A / 33 A.
Frequency range45-55 Hz / 55-65 Hz.
Output DC (Grid Side)
Rated output power: 6 kW.
Max. apparent output power: 6.6 kVA.
Operation phase: 1/N/PE.
Rated grid voltage: 220 V / 230 V.
Rated grid frequency: 50 Hz.
Rated grid output current: 27.3 A / 26.1 A.
Max. output current: 30 A.
Power Factor: >0.99 (0.8 leading – 0.8 lagging).
THDi: <2%.
Efficiency
Max. efficiency: >97.1%.
EU efficiency: >96.5%.
Protection
DC reverse-polarity protection: Yes.
Short circuit protection: Yes.
Output over current protection: Yes.
Surge protection: DC Type II / AC Type II.
Ground fault monitoring: Yes.
Integrated AFCI (DC arc-fault circuit protection): Yes (1).
Protection class/Over voltage category: I/II.
General Data
Dimensions (W*H*D): 333*505*249 mm.
Weight: 18.3 kg.
Topology: High-frequency isolation (for battery).
Operating ambient temperature range: -25 ~ +60°C.
Ingress protection: IP65.
Cooling concept: Natural convection.
Max. operation altitude: 3000 m.
Grid connection standard: G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA.
Safety/EMC standard: IEC/EN 62109-1/-2, EN 61000-6-2/-3.
Other Features
DC connection: MC4 connector.
AC connection: Quick connection plug.
Display: 7.0″LCD color screen display.
Communication: RS485, Optional: Wi-Fi, GPRS.
Warranty
5-year standard warranty, extendable up to 10-years (SOL-WAR-10Y-RHI).
