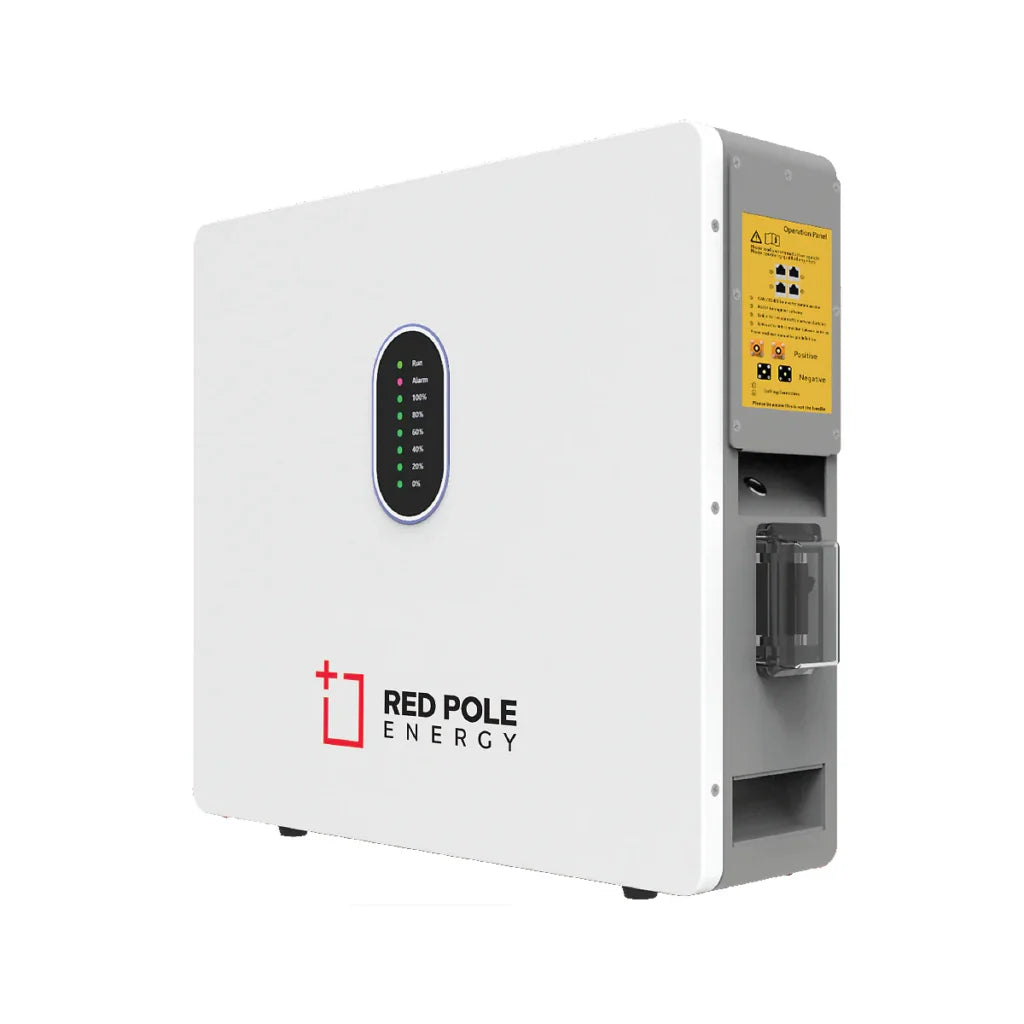

Red Pole Energy Vital 5 51.2V 100Ah 5.12kWh LiFeP04 Battery
The Vital-5 Lithium Iron Phosphate (LiFePO4) battery is a state-of-the-art energy storage solution designed for a wide range of residential applications, including backup power, off-grid systems, time of use, and self-consumption. It’s perfectly compatible with 48V inverters and can be easily integrated into your solar system to store energy from the daytime for use at night. This versatile unit can be wall-mounted or floor-standing, offering compact storage with easy access to communication ports and terminals.
Key Features:
- Usable Capacity: 5.12kWh with a nominal voltage of 51.2VDC and a nominal capacity of 100Ah, ensuring a reliable power source for various applications.
- Built-in BMS (Battery Management System): Protects against over-discharge, over-charge, over-current, and extreme temperatures while balancing cells to extend their cycle life.
- Expandable: Connect up to 15 Vital-5 batteries in parallel to expand capacity and power, suitable for more significant energy requirements.
- Durable and Safe: Features ultra-safe Lithium Iron Phosphate cells (LiFePO4/LFP) with a built-in isolator switch for added protection and an IP65 rating, indicating dust and water resistance.
- Compatibility: Works seamlessly with top inverter brands including Sunsynk, Deye, Victron, Growatt, Kodak, SMA, Goodwe, SOFAR, Megarevo, and LUXPOWER.
- Easy Installation: Comes with a quick-connect cable terminal (cable included), allowing for straightforward setup whether wall-mounted or free-standing. The BMS is compatible with leading inverter brands for a hassle-free integration.
- Performance and Warranty: Offers over 6000 cycles at 80% Depth of Discharge (DoD) with a 10-year warranty option available, providing peace of mind and long-term reliability.
- Protection and Compliance: Equipped with over-voltage, under-voltage, and short circuit protection. It meets international standards with certifications such as CB, CE (EMC&LVD), UL1973, and UL9540A.
Included in the package are a 51.2V 100Ah (5.12kWh) Lithium (LiFePO4) Battery, installation manual, wall mounting brackets, a set of battery cables (1m long each, quick connect terminal and 10mm terminal), and a pair of quick connectors for parallel setup.
This product is engineered to offer a combination of high performance, longevity, and safety, making it an ideal choice for anyone looking to enhance their energy storage capabilities in an eco-friendly manner.
| Performance | |
|---|---|
| Nominal Voltage | 51.2 Vdc |
| Nominal Capacity | 100Ah |
| Battery Energy1 | 5120 Wh |
| Charge Voltage | 55.68-56.16Vdc |
| Discharge Voltage | 45.6-56.16 Vdc |
| Standard Charge / Discharge Current | 20A – 50A |
| Standard Charge / Discharge Power | 1000W – 2500W |
| Max Charge / Discharge Current | 100A |
| Max Charge / Discharge Power | 5000W |
| Short Circuit Current | 350A |
| Communication | |
| Display | SOC status indicator, LED indicator |
| Communication | RS232 / RS485 / CAN |
| General Specification | |
| Dimension (W×D×H mm) | 520 x 470 x 141.5mm |
| Weight (Kg) | 47.2kg |
| Installation | Floor stand or Wall mounted |
| Working Temperature2 | 0ºC ~ 55ºC |
| Storage Temperature | -20ºC ~ 60ºC |
| Operating / Storage / humidity | ≤ 95%RH |
| Max Operating Altitude | ≤2000m |
| IP Rating | IP65 |
| Cell Technology | LiFePO4, Lithium Iron Phosphate |
| Cycle life3 | 6000 Cycles @ 80% DOD / 25ºC / 0.5C, 60% EOL |
| Scalability | Max 15 batteries in parallel |
| Standard Compliance | |
| Certification | CB,CE (EMC&LVD) UL1973, UL9540A |
