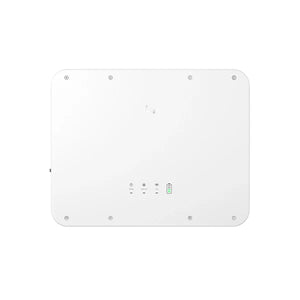

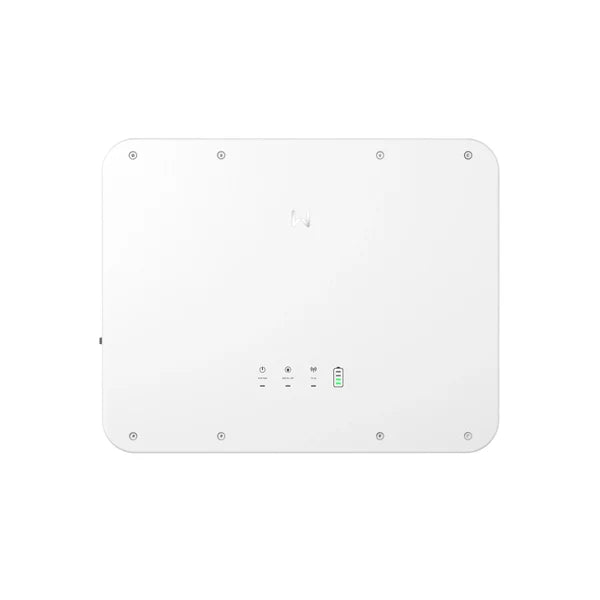

GoodWe Es Uniq 6kW Hybrid Inverter

SKU:
Categories : Inverters
In Stock
Regular priceR 15,699.00
GoodWe Es Uniq 6kW Hybrid Inverter LV SP GW6000-ES-C10 GoodWe’s ES Uniq Series inverter, available in 3-12kW capacities, are specifically designed for residential PV installations....
Quantity
Categories : Inverters

GoodWe Es Uniq 6kW Hybrid Inverter LV SP GW6000-ES-C10

GoodWe’s ES Uniq Series inverter, available in 3-12kW capacities, are specifically designed for residential PV installations. It offers flexible compatibility with both ongrid and off-grid systems and support parallel connection of up to 6 inverters for easy system expansion. The ES Uniq inverters feature a user-friendly touch-screen LCD display for intuitive operation and monitoring, and can be combined with a range of battery capacities and brands, including GoodWe’s Lynx A and Lynx U batteries.

Product Features:

  • 3-in-1 port for generator, smart loads & grid inverter
  • Micro-grid ready & parallel operation (up to 6 units)
  • Optional AI-driven AFCI & IP66 outdoor protection
  • 20A DC input per string with 200% PV oversizing
  • Smart load control & <4ms seamless backup switching

Specifications:

Battery Input

  • Battery type: Li-Ion / Lead-acid
  • Nominal battery voltage: 48V
  • Battery voltage range: 40V ~ 60V
  • Start-up voltage: 44.2V
  • Number of battery inputs: 1
  • Max. continuous charging current: 140A
  • Max. continuous discharging current: 140A
  • Max. charging power: 6.0kW
  • Max. discharging power: 6.6kW

PV Input

  • Max. input power: 12.0kW
  • Max. input voltage: 600V
  • MPPT operating voltage range: 60V ~ 550V
  • Start-up voltage: 58V
  • Nominal input voltage: 360V
  • Number of MPPT trackers: 2
  • Strings per MPPT: 1
  • Max. input current per MPPT: 20A
  • Max. short circuit current per MPPT: 26A

AC Output (Grid-Tied)

  • Nominal output power: 6.0kW
  • Max. AC active power: 6.6kW
  • Nominal apparent power: 6.0kVA
  • Max. apparent power: 6.6kVA
  • Nominal output voltage: 220 / 230 / 240V
  • Output voltage range: 170V ~ 280V
  • Nominal AC grid frequency: 50 / 60Hz
  • AC grid frequency range: 45 ~ 55Hz / 55 ~ 65Hz
  • Max. AC current output to grid: 30A
  • Max. AC current from grid: 40A
  • Power factor: ~1 (adjustable from 0.8 leading to 0.8 lagging)
  • Max. total harmonic distortion: <3%

AC Output (Back-up)

  • Back-up nominal apparent power: 6.0kVA
  • Max. output apparent power without grid: 6.6kVA (12.0kVA for 10s)
  • Max. output current without grid: 30A
  • Max. output current with grid: 40A
  • Nominal output voltage: 220 / 230 / 240V
  • Nominal output frequency: 50 / 60Hz
  • Output THDv (at linear load): <3%

AC Generator Input

  • Nominal apparent power from generator: 6.0kVA
  • Max. apparent power from generator: 6.6kVA
  • Input voltage range: 170V ~ 280V
  • Frequency range: 45 ~ 55Hz / 55 ~ 65Hz
  • Max. AC current from generator: 40A
  • Nominal AC current from generator:
    • 27.3A at 220V
    • 26.1A at 230V
    • 25.0A at 240V

Efficiency

  • Max. efficiency: 97.6%
  • European efficiency: 96.2%
  • Max. battery to AC efficiency: 95.5%
  • MPPT efficiency: 99.9%

Protection

  • PV string current monitoring: Integrated
  • PV insulation resistance detection: Integrated
  • Residual current monitoring: Integrated
  • PV reverse polarity protection: Integrated
  • Anti-islanding protection: Integrated
  • AC overcurrent protection: Integrated
  • AC short circuit protection: Integrated
  • AC overvoltage protection: Integrated
  • DC switch: Integrated
  • DC surge protection: Type III
  • AC surge protection: Type III
  • AFCI: Optional
  • Rapid shutdown: Optional
  • Remote shutdown: Integrated

General

  • Operating temperature range: -35°C to +60°C
  • Relative humidity: 0% ~ 95%
  • Max. operating altitude: 3000m
  • Cooling method: Smart fan cooling
  • User interface: LCD, WLAN + App
  • Communication with BMS: CAN
  • Other communication: RS485, WiFi, LAN, Bluetooth
  • Communication protocols: Modbus-RTU, Modbus-TCP
  • Weight: 15.5kg
  • Dimensions (W × H × D): 560 × 415 × 204 mm
  • Topology: Non-isolated
  • Ingress protection rating: IP66
  • Mounting method: Wall-mounted
