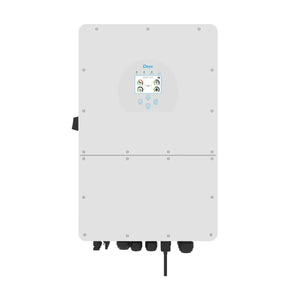

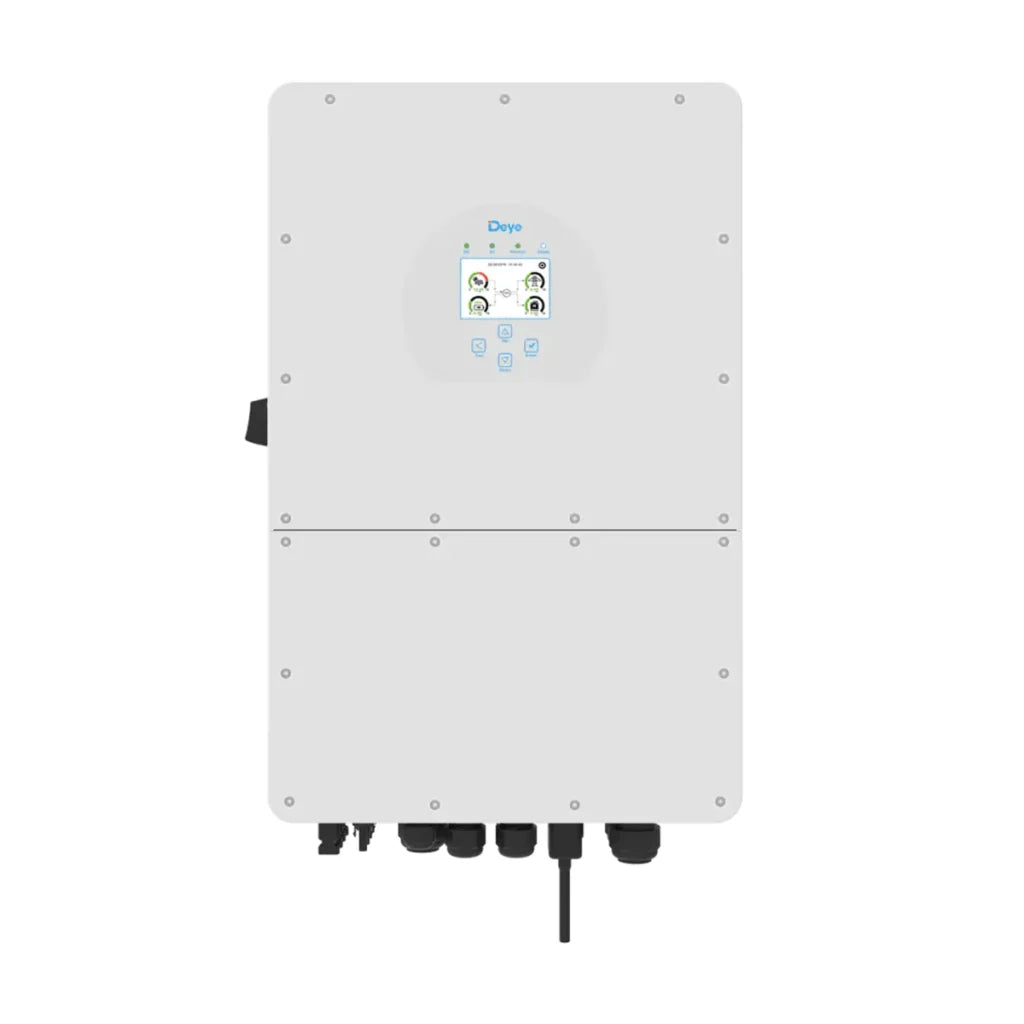

Deye 20kW Hybrid Three Phase Inverter HV is brand new three phase hybrid inverter with High voltage battery 160-700V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
Smart Monitoring Platform- Remotely Shutdown Function:
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
Features:
- 100% unbalanced output, each phase; Max. output up to 50% rated power.
- AC couple to retrofit existing solar system.
- Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel.
- Max. charging/discharging current of 240A.
- Support storing energy from diesel generator.
- 48V low voltage battery, transformer isolation design.
- 6 time periods for battery charging/discharging.
Battery Input Data:
- Battery Type: Lead-acid or Li-lon.
- Battery Voltage Range (V): 160~700
- Max. Charging Current (A): 37A
- Max. Discharging Current (A): 37A
- Number of Battery Input: 1
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS.
PV String Input Data:
- Max. DC Input Power (W): 26000W.
- Max. DC Input Voltage (V): 1000
- Start-up Voltage (V): 180
- MPPT Range (V): 150V – 850V.
- Full Load DC Voltage Range: 500V – 850V.
- Rated DC Input Voltage: 600
- PV Input Current (A): 26 +26
- Max. PV ISC (A): 39+39
- No. of MPPT Trackers: 2
- No. of strings per MPPT Tracker: 2+2
AC Output Data:
- Rated AC Output and UPS Power (W): 20000.
- Max. AC Output Power (W): 22000.
- AC Output Rated Current (A): 30.4/29
- Max. AC Current (A): 33.4/31.9
- Max Three-phase Unbalanced Output Current: 35
- Generator input/Smart load /AC couple current (A): 30.4/80/30.4
- Max Continuous AC Passthrough(AC): 80
- Peak Power (off grid): 1.5 times of rated power, 10 S.
- Output Frequency and Voltage: 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
- Power Factor: 0.8 leading to 0.8 lagging.
- Grid Type: Three Phase.
- Total Harmonics Current Distortion (THDi):<3% (of nominal power)
- DC current injection:<0.5% In
Efficiency:
- Max. Efficiency: 97.60%
- Euro Efficiency: 97.00%
- MPPT Efficiency: 99.90%
Protection:
- Integrated: Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)
- Output Over Voltage Protection: DC Type II / AC Type Ⅲ
Certifications and Standards:
- Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
- Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data:
- Operating Temperature Range (C): -40~60℃, >45℃ Derating
- Cooling: Smart Cooling
- Noise(dB): ≤55 dB
- Communication with BMS: RS485;CAN
- Weight (Kg): 30.5
- Size (Length x Width x Height mm): 408×638×237 (Excluding Connectors and Brackets)
- Protection Degree: IP65
- Installation Style: Wall mounted
- Warranty: 5 Years (10 Years Optional)
