Deye 16kW Solar, Inverter & Battery Combo Deal – 1 x Deye 16kW Inverter, 1 X 14kW Volta Lithium Ion Battery & 16 X Sunova 585W Solar Panels
Deye 16kW Solar, Inverter & Battery Combo Deal – 1 x Deye 16kW Inverter, 1 X 14kW Volta Lithium Ion Battery & 16 X Sunova 585W Solar Panels

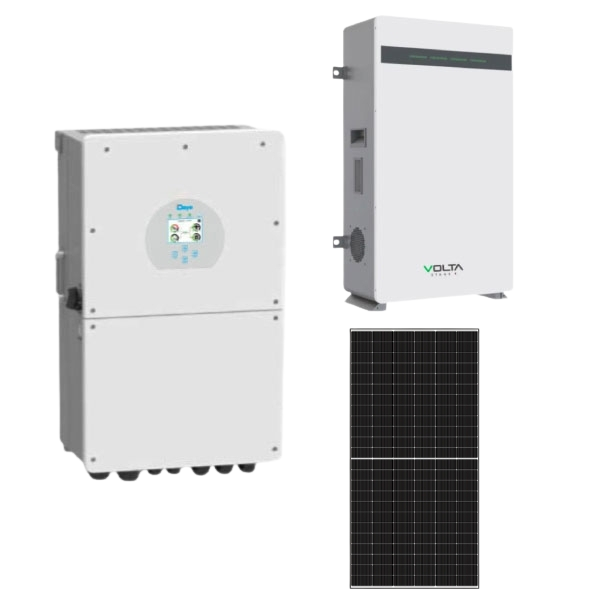

Whats Included:
16 x Sunova Solar 585W 144 Cell Tangra™ M Solar Panel – SS-585-72MDH(T)
1 x Deye 16kW Hybrid Inverter (1 Phase) – SUN-16K-SG01LP1-EU
1 x Volta 14.34kWh 280Ah LiFePo4 Lithium Ion Battery – VOLTA-S4-51.2
More Details:
Sunova Solar 585W 144 Cell Tangra™ M Solar Panel
Model SS-585-72MDH(T)
Half-Cut Cell Technology – Divides panel in half, allowing top & bottom to run independently generating more energy even when half is shaded.
Combines creative technology effectively & extremely improves the module efficiency & power output.
585W Solar Panel.
Equipped with 144 Cells.
30 Year Lifespan Delivers 10-30% More Power compared with Conventional P-Type Modules.
The Natural Lack of LID in the N-Type Solar Cell can Increase Power Generation.
Excellent Low Irradiance Performance.
Better Light Trapping and Current Collection to Improve Module Power Output and Reliability.
Industry-Leading, Lowest Thermal Coefficient.
Optimized Electrical Design and Lower Operating Current for Reduced Hot Spot Loss and Better Temperature.
Certified to withstand 2400 Pa of Wind Load and 5400 Pa of Snow Load.
100% Triple EL Test, Which Greatly Reduces the Hidden Cracks Rate.
Number of Cells: 144 Cells
Cell Type: N-Type Monocrystalline.
Glass: Tempered, 3.2mm AR, High Transmittance, Low Iron.
Silver/Black Anodized Aluminium Alloy Frame.
Junction Box: IP68, 3 Bypass Diodes.
Connector: MC4 Compatible.
Mechanical Load: Wind Load: 5400 Pa; Wind Load: 2400 Pa
Maximum Power: 585W (STC) & 436W (NOCT)
Open-Circuit Voltage: 52.09V (STC) & 49.17V (NOCT)
Short-Circuit Current: 13.68A (STC) & 11.05A (NOCT)
Maximum Power Voltage: 44.61V (STC) & 41.76V (NOCT)
Maximum Power Current: 13.12A (STC) & 10.44A (NOCT)
Module Efficiency: 22.60%
Power Tolerance: 0,+5W
Maximum System Voltage: 1500V
Maximum Rated Fuse Current: 25A
Current Operating Temperature: -40°C to 85°C
Comprehensive Certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
Weight: 27.2Kg
Dimensions (L x W x H): 2278 x 1134 x 30 mm
Mounting Kits & Accessories Not Included – Sold Separately.
15 Year Limited Product Warranty.
Deye 16kW Hybrid Inverter (1 Phase)
Model SUN-16K-SG01LP1-EU
Equipped with colourful touch LCD.
Wi-Fi Ready – works via Solarman App.
Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
DC Couple & AC Couple – retrofit existing solar system.
Maximum 16pcs parallel for on-grid & off-grid operation – multiple battery parallel supported.
6 Time periods for battery charge/discharge.
Storing energy from diesel generator supported.
Grid Type: Single Phase
Protection Degree: IP65
Noise Level: <30dB Maximum Charge/Discharge Current: 290A Charging Strategy for Lithium Ion Battery: Self-adaption to BMS Maximum DC Input Power: 20800W Maximum DC Input Voltage: 500V MPPT Range: 150-425V 3 x MPPT Start-up Voltage: 125V AC Output & UPS Power: 16000W Backup Power: 14000W Backup Rated Current: 60.9A Backup UPS: 6ms Auto switchover time. Maximum Efficiency: 97.60% Euro Efficiency: 96.50% MPPT Efficiency: 99.90% Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately) Battery Voltage Range: 40-60V Communication with BMS: CAN/RS485 Smart Cooling Operation Temperature: -45°C to 60°C, >45°C Derating
Installation Type: Wall Mounted.
Weight: 48.5Kg
Dimensions (W x H x D): 464 x 798.4 x 300 mm
5 Year Product Warranty (Extended to 10 Years if paired with Dyness/Volta Battery).
Recommended Solar Panel Configuration:
Min 3 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
First MPPT: Min 3 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
Second MPPT: Min 3 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
Third MPPT: Min 3 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
Volta 14.34kWh 280Ah LiFePo4 Lithium Ion Battery
Model VOLTA-S4-51.2
1C/1C Continual Charge & Discharge.
Superior LiFePo4 Safety Performance.
Low Voltage Safety Connection.
Volta’s Battery BMS simultaneous communication & compatible with multiple inverter brands supported (Refer to brochure)
Nominal Energy: 14.34kWh
Nominal Voltage: 51.2V
Nominal Capacity: 280Ah
Cell Type: LFP
Standard Charge Voltage: 56V
Maximum Discharge Current: 200A
Discharge Cut-Off Voltage: 44.8V
Parallel Function: 8 Units in Parallels Supported.
Communication Interface: RS485, RS232, CAN (Optional)
Cycle Life: >6000 Cycles (80%DOD)
Charge Temperature Range: 0°C to 65°C
Discharge Temperature Range: -20°C to 65°C
Certification: MSDS/UN38.3
Installation Method: Wall Mounted or Floor Standing
Weight: 130Kg
Dimensions: 490 x 840 x 242 mm
10 Year Limited Product Warranty.
