Title

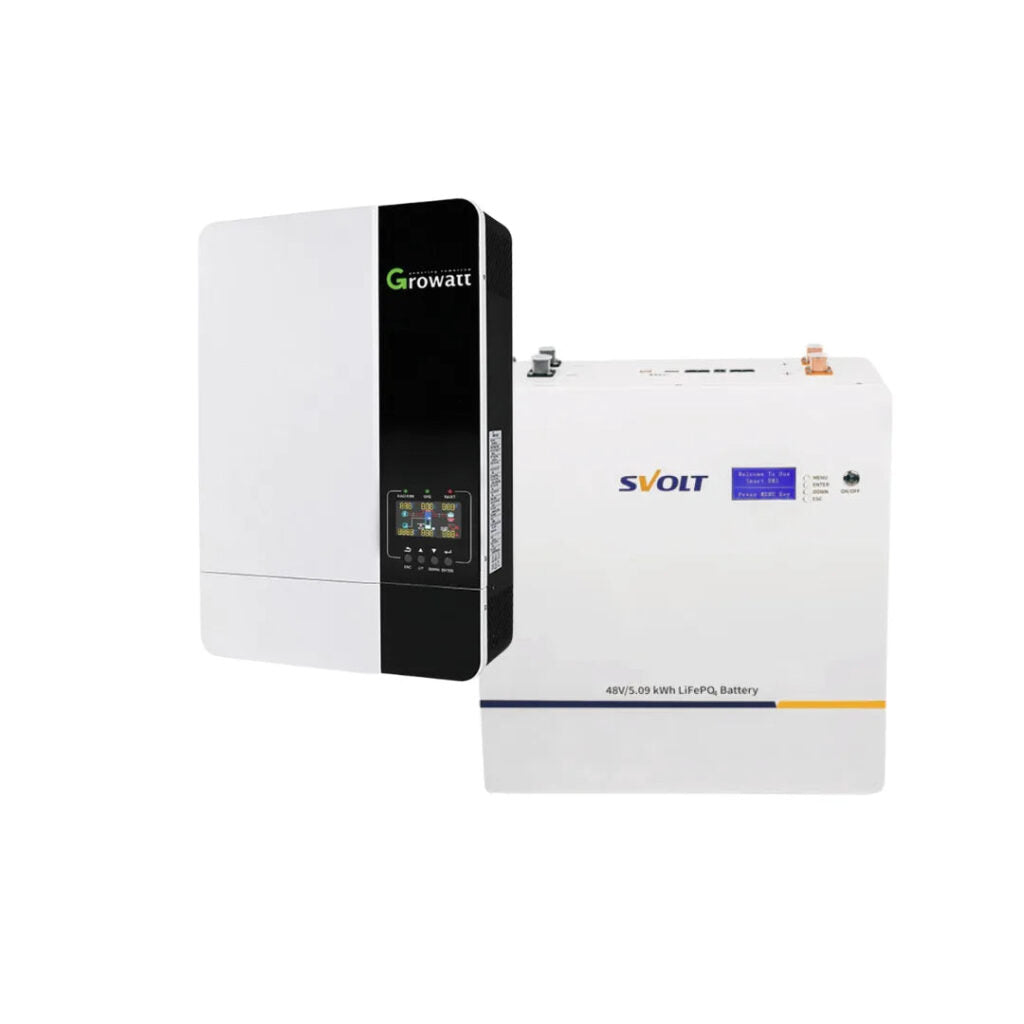

5KVA / 5000W MPPT GROWATT Hybrid Inverter Combo + 5.43kWh SVOLT Lithium Battery
Functions
- Integrated MPPT charger controller.
- Equalization charging function.
- Use with Batteries or without.
- Max PV input up to 450vDC.
- Choose grid or solar input priority.
- WIFI/GPRS remote monitoring.
- Parallel up to 6 inverters.
- PV & Grid Power combine if PV energy is insufficient for load.
- Flexible schedule for charging and discharging the batteries.
Inverter Output [AC]
- Rated Power: 5000W.
- AC Voltage Regulation (Battery): 230VAC ± 5%.
- Surge Power: 10000VA for 5 sec.
- Efficiency (Peak): 93%.
- Waveform: Pure sine wave.
- Transfer Time: 10ms – 20ms.
Solar Charger
- Maximum PV Array Power: 6000W.
- MPPT Range @ Operating Voltage: 120VDC – 430VDC.
- Maximum PV Array Open Circuit Voltage: 450vDC.
- Maximum Solar Charge Current: 100 A.
AC Charger
- AC Charge Current: 80A.
- AC Input Voltage: 230 VAC.
- Selectable Voltage Range: 230 VAC.
- Frequency Range : 50 Hz/60 Hz (Auto sensing).
Physical
- Protection degree: IP20.
- Height: 330 x 485 x 135mm.
- Weight: 12 kg
Key Features
- Intelligent Off-Grid & Hybrid modes
- PV and AC Power can power loads simultaneously
- 2 x MPPTs with a wide input voltage range.
- BMS communication to most leading brands of Batteries (See List)
- Free monitoring via the app and remote upgrades.
- Single or unbalanced three phase
- Parallel up to 10 units.
- Independent generator interface.
PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A
What’s in the box
1 x Inverter
1 x User Manual
1 x Wifi Dongle
Battery Specifications:
SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery (Square)
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets – Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
| Energy | 5.43kWh |
| Installation Type | Wall Mounted |
| Battery Type-Chemistry | LiFePO4 |
| Norminal Voltage | 51.2V |
| Norminal Capacity | 106Ah |
| Dimensions(LxWxH) | 510*475*160mm |
| Weight（Approx.） | 45.6KGS |
| Terminal Type | Fast Plug In & Plug Out |
| Case Material | SPCC |
| BMS Build-in | Yes |
| Internal Resistance | <25mΩ |
| Efficiency – Round Trip | >97% |
| Self Discharge Per Month | <3% |
| Max Parallel Connectors | 16Pcs |
| Series Connections | Not Allowed |
| Cycle Life(0.3C,25°C@90%DOD) | >6,000 cycles |
| Discharge Temperature | -20°C to 70°C |
| Charge Temperature | -5°C to 65°C |
| Storage Temperature | 0°C to 30°C |
| Bluetooth(App) | Optional |
| LCD Screen | Yes |
| Heating Function | Optional |
| Operating Voltage Range | 43.2V-57.6V |
| Recommend Charge Voltage | 56.0V±0.2V |
| Max Charge Voltage | 58.4V±0.2V |
| Recommend Charge Current | 50A |
| Max Continuous Charge Current | 100A |
| Recommend Discharge Voltage | 44.8V±0.2V |
| Max Discharging Voltage | 43.2V±0.2V |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 150A（100ms） |
Size:
550 x 520 x 220
50.71kg
What’s In the Box:
- 1 x SVOLT 51.2V 106Ah A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
- 1x Wall Mount Bracket
- 1x Warranty Card
5 Years Warranty
Combo includes:
- 1x Growatt Hybrid Inverter 48V 5KW Inverter Pure Sine Wave (Including WIFI) SPF 5000 ES (5 Years Warranty)
- 1x SVOLT 48V 106Ah 5.43 kWh A-Grade Wall Mount Lithium Battery (5 Years Warranty)
- Battery cables and brackets included
